SR Bracket | 1000A Battery Combiner Box

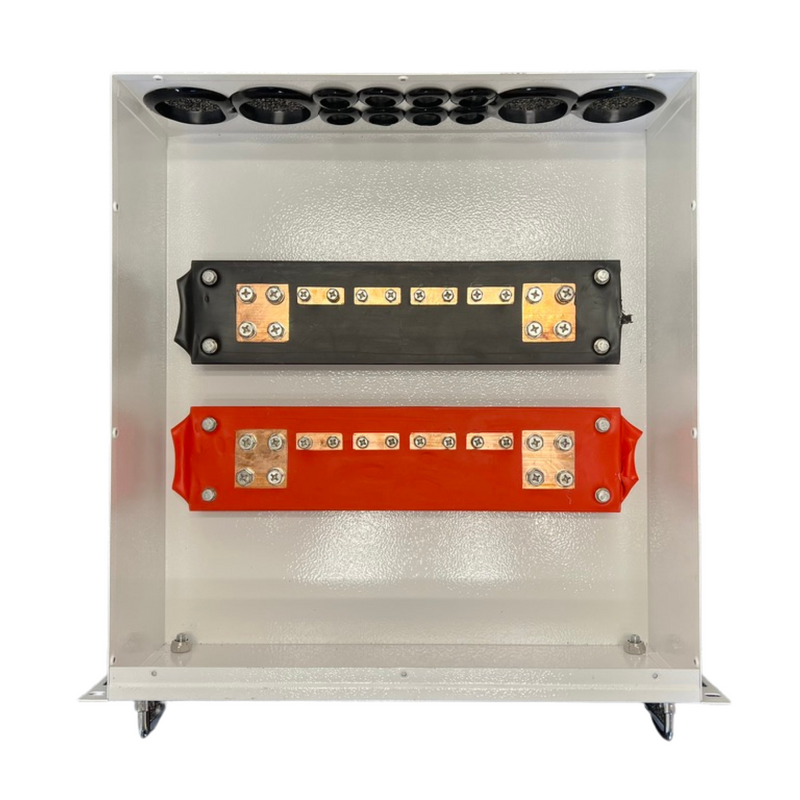

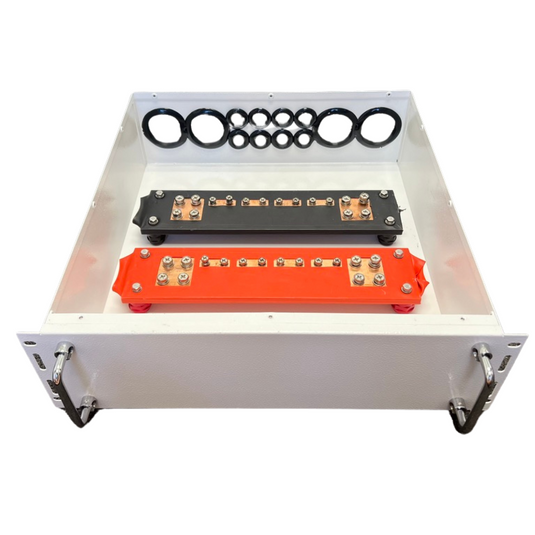

The SR Bracket 1000A Battery Combiner Box allows seamless parallel connection of up to eight SR5K-UL Battery Modules, creating a powerful and scalable energy solution. This fully assembled, 19-inch rackmount enclosure is ready for installation and features 1000A positive (red) and negative (black) heavy-duty, copper battery busbars with eight M6 terminals for each SR5K-UL battery module, along with eight M8 terminals for inverter connections and paralleling multiple SR Bracket stacks together.

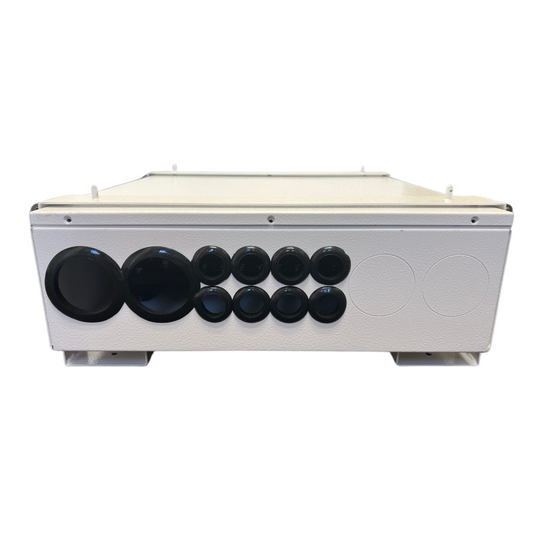

The SR Bracket 1000A Battery Combiner Box ships with an SR Bracket to seemless stacking with SR5K-UL Battery Modules using SR Brackets. There are four 70mm and eight 37.5mm knockouts in the back of the box for cable management. Also included are four 62.7mm and eight 30mm plastic conduit protectors.
